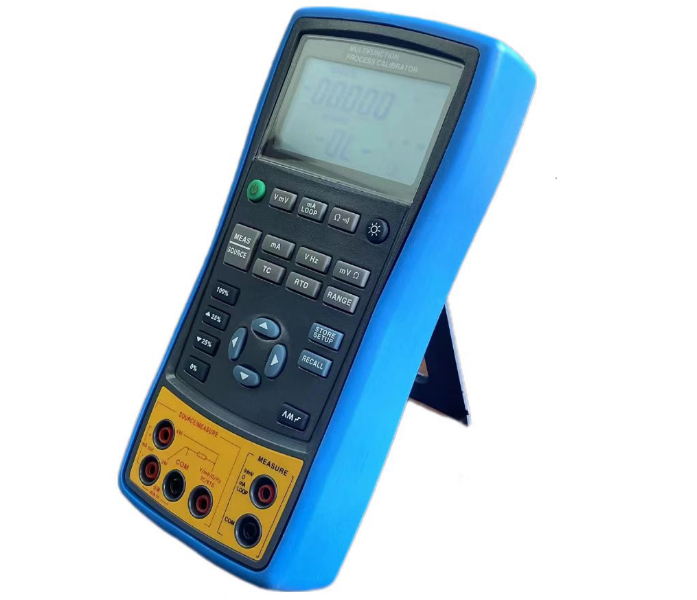

KT1825 Multifunction Process Calibrator
- Product description: KT-1825multifunction calibration tools designed to calibrate almost anything. These calibration tools source and measure almost all process parameters.
Product introduction
KT-1825 multifunction calibration tools designed to calibrate almost anything. These calibration tools source and measure almost all process parameters.It can measure and source resistance, current, frequency, thermal resistance, thermocouple and these second instrument etc.
Features
● Accuracy: 0.05%Rdg
●Calibrates a transmitter using the split-screen.
●The measure of thermocouple provides automatic reference junction
●Automatic and manual cold end temperature compensation for TC.
●Manual stepping and automatic stepping and ramping.
●Super-strong protection：The waterproof grade is IP67.
●Automatic protection against the signal terminals connect to the 220V.
●Support for PC communication
●Store environment temperature:(-20– 60)°C
●Relative humidity :0~ 90RH No condensation
●Weight：0.65Kg
●Size：200mm×96mm×47mmm
●Power supply: 6 R03-model rechargeable batteries or power adapter
● communication mode：RS232
|
Function |
Measure |
Source |
|
DC V |
0～50V (the upper display ± 30V) |
0～10V |
|
DC mV |
0～24mA (the upper display ± 24mA) |
0～24mA |
|
Frequency |
1.000Hz ～ 100.00kHz |
0.00Hz～20.000kHz |
|
Resistance |
0～3200Ω |
0～3200Ω |
|
RTD |
Pt100, Pt1000, Cu50, Cu100 |
Pt100, Pt1000, Cu50, Cu100 |
|
TC |
E,J,K,T,B,R,S,N |
E、J、K、T、B、R、S、N |
|
Others |
Stepping output, ramp, phase step output, user-defined range |
|
