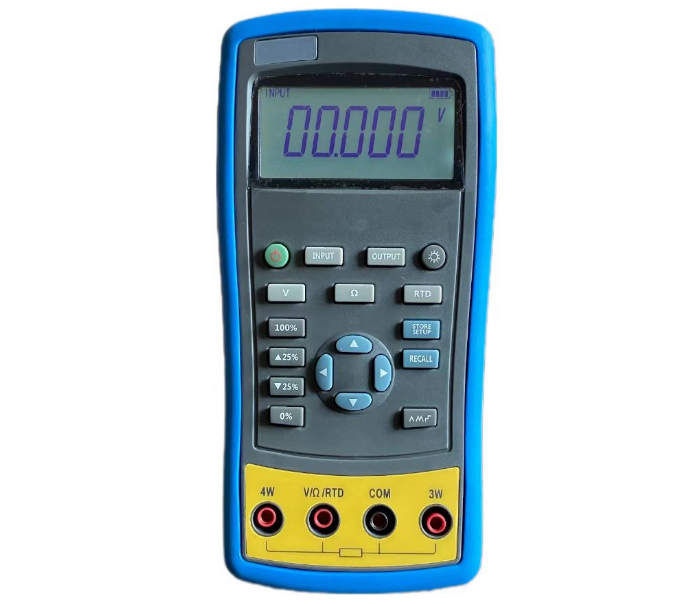

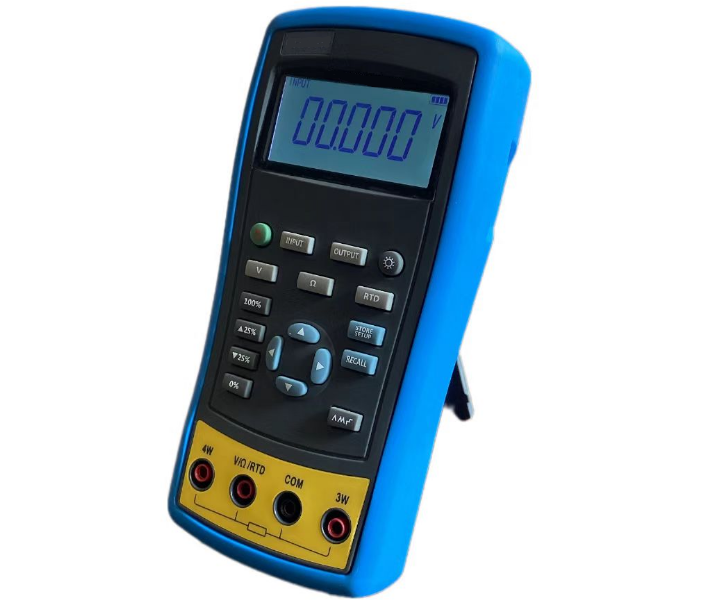

KT1812 RTD Calibrator
- Product description: KT1812 RTD Calibrator is a kind of calibrating RTD temperature transmitter instrument, it can use on site. It can measure and simulate various type RTD. It can also simulate and test resistance.
Product introduction
KT1812 RTD Calibrator is a kind of calibrating RTD temperature transmitter instrument, it can use on site. It can measure and simulate various type RTD. It can also simulate and test resistance.
Features
Accuracy: 0.05%F.s
Measure output temperature of thermal resistance
May simulate output of thermal resistance
Automatic identification of three-wire or four-wire connection mode
Perfect performance on waterproof protection: IP67 grade
In case of connecting 220V with automatic over voltage protection function.
With manual stepping, automatic stepping and 0 ~ 100% output of phase step and ramp function
LED with white backlight
Weight : 0.65kg
Dimensions: 185mm×93mm×47mm
Technical Specification
Measure and Source Functions
|
Function |
Measure |
Source |
|
DC V |
0～30V |
Not available |
|
Resistance |
0～3200Ω |
0～3200Ω |
|
RTD |
Pt100, Pt1000, Cu50, Cu100 |
Pt100, Pt1000, Cu50, Cu100 |
|
Others |
Stepping output, ramp, phase step output, user-defined range |
|
