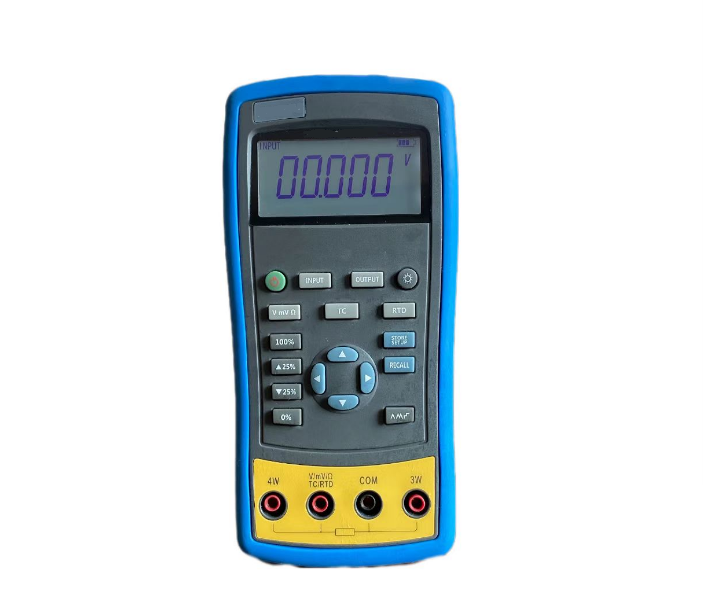

KT1810 Temperature Calibrator
- Product description: KT1810 Temperature Calibrator integrates measurement and source of voltage, mV, resistance, simulate thermocouple and simulate RTD into one. It feature in high precision, high resolution and reliable.
Product introduction
KT1810
Temperature Calibrator integrates measurement and source of voltage, mV,
resistance, simulate thermocouple and simulate RTD into one. It feature in high
precision, high resolution and reliable. With big LED display, it is easy to
operation, with firm structure, small and convient.
Features
Accuracy: 0.05%F.S
Measure the output temperature of thermal resistance and thermocouple
Simulate thermal resistance and thermocouple
Thermocouple measurement and output all supply auto and manual temperature
compensation.
Automatic identification of three-wire or four-wire connection mode
Perfect performance on waterproof protection: IP67 grade
In case of connecting 220V with automatic over voltage protection function.
With manual stepping, automatic stepping and 0 ~ 100% output of phase step and
ramp function
LED with white backlight
Weight : 0.35kg
Dimensions: 185mm×93mm×47mm
Technical Specification
Measure and Source Functions
|
Function |
Measure |
Source |
|
DC V |
0～30V |
Not available |
|
DC mV |
0～120mV |
0mV～100mV |
|
Resistance |
0～3200Ω |
0～3200Ω |
|
RTD |
Pt100, Pt1000, Cu50, Cu100 |
Pt100, Pt1000, Cu50, Cu100 |
|
TC |
E,J,K,T,B,R,S,N |
E,J,K,T,B,R,S,N |
|
Others |
Stepping output, ramp, phase step output, user-defined range |
|
