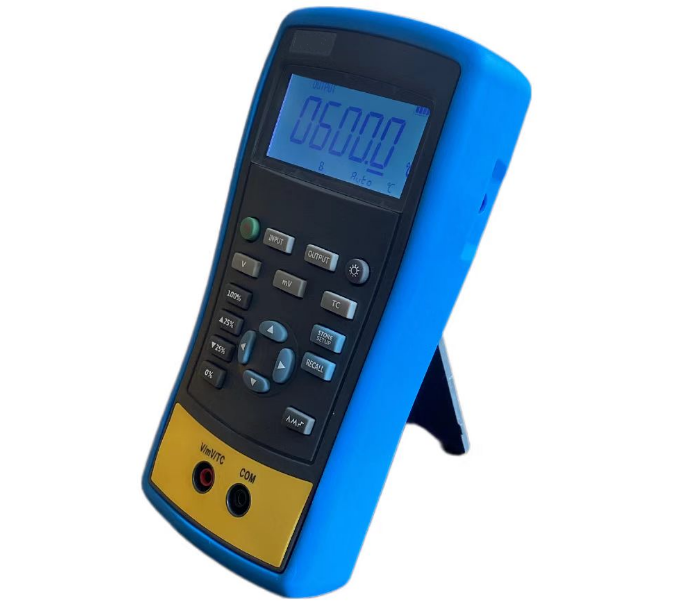

KT1814 Hand-held Thermocouple Calibrator
- Product description: KT1814 Hand-held Thermocouple Calibrator integrates measurement and output of voltage, mV signal, thermocouple into one. With LED, the data could be showed more clearly.
Product introduction
KT1814 Hand-held Thermocouple Calibrator integrates measurement and output of voltage, mV signal, thermocouple into one. With LED, the data could be showed more clearly.
Feature
Accuracy: 0.05%F.S
Simulate thermocouple in the form of temperature
Measurement and output of thermocouple all supply auto and manual temperature
compensation
Perfect performance on waterproof protection: IP67 grade
In case of connecting 220V with automatic over voltage protection function
With manual stepping, automatic stepping and 0 ~ 100% output of phase step and
ramp function.
LED with white backlight
Weight : 0.35kg
Dimensions: 185mm×93mm×47mm
Technical Specification
Measure and Source Functions
|
Function |
Measure |
Source |
|
DC V |
0～30 V |
Not available |
|
DC mV |
0～100 mV |
0～100 mV |
|
Thermocouple |
E,J,K,T,B,R,S,N |
E、J、K、T、B、R、S、N |
|
Others |
Stepping output, ramp, phase step output, user-defined range |
|
