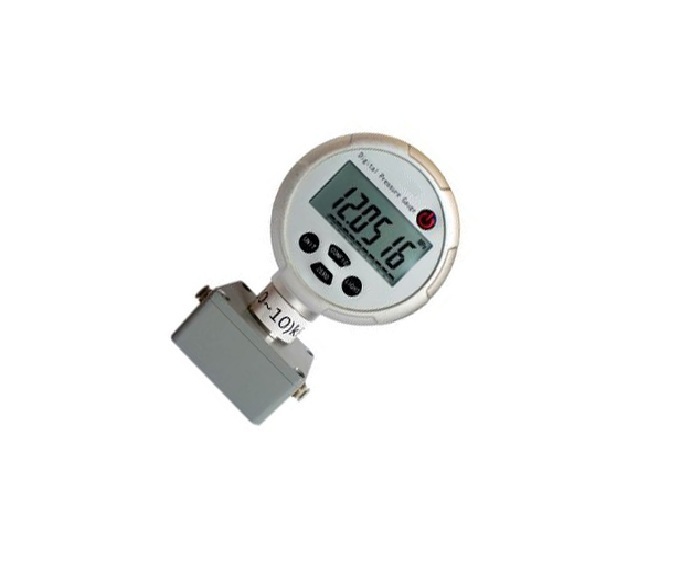

DPC103H Digital Micro Pressure Calibrator
- Product description: DPC103H intelligent pressure calibrator is a single-range, HART protocol (optional), full-scale pressure measurement, high-precision DC current, voltage measurement and 24VDC power output output. It c
Product introduction
product
description:
DPC103H intelligent pressure calibrator is a single-range, HART protocol
(optional), full-scale pressure measurement, high-precision DC current, voltage
measurement and 24VDC power output output. It can be used to verify common
miniature pressure gauges, differential pressure transmitters and real-time
pressure measurement, and to debug HART smart pressure transmitters.
main application:
Verify smart HART type pressure (differential pressure) transmitter
Verify smart pressure (differential pressure) transmitter
Verify the normal pressure of the transmitter (differential pressure)
feature:
Built-in handheld communicator function can verify HART intelligent pressure
transmitter
High precision, high reliability
Built-in pressure module and external intelligent digital pressure module
Two-point calibration, user-friendly operation
Data backup, powerful data correction
mmH2O, mmHg, inH2O, Pa, kPa, MPa, psi, bar, mbar
Electrical measurement indicators:
|
Measurement items |
Range |
Feature |
|
Current |
25.0000 mA |
Accuary±（0.02%RD+0.003%FS） |
|
Voltage |
25.0000 V |
Accuary±（0.02%RD+0.003%FS） |
|
Convision |
On/off |
（1~12）V |
|
Output |
Range |
Feature |
|
Power Output |
DC24 |
Max current :50mA, Overload protection current :120mA |
Power
configuration:
Power mode: internal battery power or dedicated adapter power
Battery working time: about 100 hours, correspondingly shortened when 24V is
loaded
Battery charging time: about 3 hours
Other indicators:
Size: head Φ114mm×39mm, total length 180mm
Weight: 0.6 kg
Pressure port: M20×1.5
Communication interface: RS232
Ambient temperature: (-20~70)°C
Temperature compensation: (0~50)°C
Relative humidity: <95%
Atmospheric pressure: (86~106)kPa
Storage temperature: (-40~85)°C
Differential pressure range selection table
|
Range |
Type |
Accuracy① |
Accuracy② |
Media |
|
(0~60)Pa |
D |
1.6 |
-- |
③ |
|
(0~250)Pa |
D |
0.5 |
-- |
③ |
|
(0~1)kPa |
D |
0.1 |
-- |
③ |
|
(0~2)kPa |
D |
-- |
0.05 |
③ |
|
(0~5)kPa |
D |
-- |
0.05 |
③ |
|
(0~10)kPa |
D |
-- |
0.05 |
③ |
-
D = different pressures;
Guaranteed accuracy of temperature range: ①(20±5)℃,②(0～50)℃;
③Non-corrosive gas compatible with glass, ceramics, silicon, room temperature vulcanized silicon rubber, nickel, gold, aluminum and other materials
Compound pressure range selection table
|
Range |
Type |
Accuracy① |
Accuracy② |
Media |
|
±60Pa |
D |
1.6 |
-- |
③ |
|
±250Pa |
D |
0.5 |
-- |
③ |
|
±1kPa |
D |
0.1 |
-- |
③ |
|
±2kPa |
D |
-- |
0.05 |
③ |
|
±5kPa |
D |
-- |
0.05 |
③ |
|
±10kPa |
D |
-- |
0.05 |
③ |
|
±16kPa |
G |
-- |
0.05 |
③ |
|
±25kPa |
G |
-- |
0.05 |
③ |
|
±40kPa |
G |
0.02 |
0.05 |
③ |
|
±60kPa |
G |
0.02 |
0.05 |
③ |
|
±100kPa |
G |
0.02 |
0.05 |
③ |
|
(-100~160)kPa |
G |
0.02 |
0.05 |
③ |
|
(-100~250)kPa |
G |
0.02 |
0.05 |
③ |
·G gauge pressure;
D=different pressure;
· Guaranteed accuracy of temperature range: ①(20±5)℃,②(0～50)℃;
·③Non-corrosive gas compatible with glass,
ceramics, silicon, room temperature vulcanized silicon rubber, nickel, gold,
aluminum and other materials
