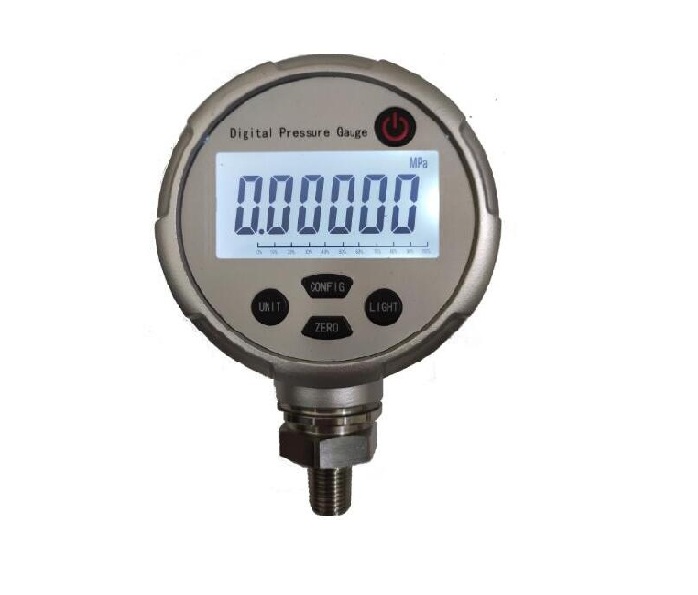

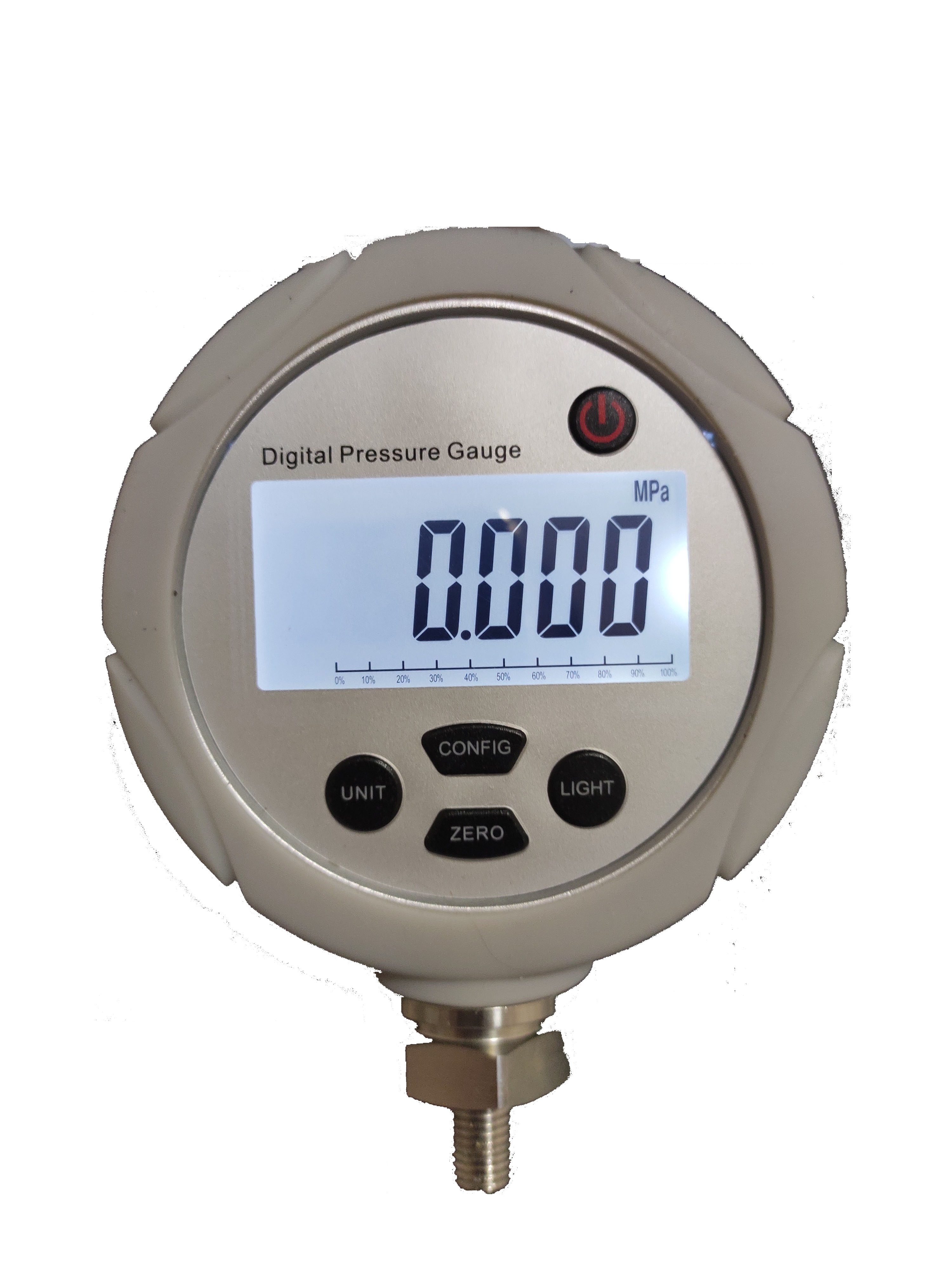

DPR100 Digital Pressure recorder

Product introduction

DPR 100 is a battery powered pressure recorder, with LCD display. It is perfect for applications requiring display pressure readings. Available on-screen data includes: statistics (max., min., average); recording status (start, stop and recording rate), display options (channel, units, text size); calibration information (data calibrated, data for recalibration). Statistics can be cleared at any time during logging. With 250000 readings, the DGR100 has one of the largest memory capacities .The non-volatile memory will retain recorded data, even if battery power is lost. Simply connect the interface cable to an availableUSBPortwith a few clicks of the mouse, data is downloaded and ready for review and export to EXCEL.

Application:

• Precision pressure measurement
• Field gauge calibration
• Pressure safety valve (PSV) testing
• Pressure leaking testing

Features:

• · Pressure ranges to 2,500 bar
• · High accuracy 0.05%FS, 0.1%FS ,0.2%
• · Fully temperature compensated accuracy 0°Cto50°C
• · Large LCD 5 bits display with backlight
• · Front panel keys for fast, easy operation
• · User-selectable measurement units Pa,kPa,MPa, psi, bar, mbar, mmH₂O, mmHg,kgf/cm2
• · Real-time operation, high speed download
• · Programmable start/stop time
• · Aluminum housing
• Over pressure warning 120%

Technical Specifications:

• · Response Time：0.1ms
• · Start/Stop Time: Software programmable start time& date, up to six months inadvance
• · Memory Capacity: 260000 readings
• · Reading Rate: 1 reading every 2 seconds to 1 every 24 hours
• · Power: Three AA alkaline batteries or one 3.6V Lithium Battery
• · BatteryLife: 1 year battery life at 1 minute reading rate with display off.
• · Engineering Units: kPa, MPa,  PSI, bar, mbar
• · Communication: RS232
• · Baud Rate:   115200
• · Software:     WINDOWS7/ WINDOWS 8 /XP/VISTA

Other Specification:

• · Dimension: Head Ø115mm×56mm, Overall Height180mm
• · Weight:    Approx.0.6kg
• · Pressure Connection: 1/4NPT

Environmental:

• · Operating Range:    (-20~70) °C
• · Humidity:            <95%
• · Atmosphere Pressure: (86~106) kPa
• · Storage Temp.:       (-40~85) °C

Software Features:

1.     Graphs Display: Display pressure data graph

2.     Real-time Recording: Real-time data acquisition and display during continuous recording

3.     Cursor Tracking: One click displays readings by time, value, parameter or sample number

4.     Data Table: Instantly access tabular view for detailed dates, times, values, and annotations

5.     Scaling Options: Auto scale function fits data to the screen, or allows user to manually enter their own values

6.     Formatting Options: Change colors, line style, plotting options, show or hide channels quickly.

7.     Statistics: Calculate averages, min., max., standard deviation

8.     Export Data: Export data in a variety of common formats, or switch to Excel with a single click

9.     Logger Configuration: Easy set up and launch of data loggers with immediate or delayed start, preferred sample rate, and device ID

10.  Communication: Automatically sets up communications port or lets user select configuration

11.  Print: Print data table or graph automatically

Conventional Pressure Range Selection

Remark: Other pressure ranges are available. Contact Factory with specific requirement.

G=Gauge Pressure; SG=Sealed Gauge Pressure;

Bottom Connect thread : 1/4NPT.1/2NPT.G1/2 ( Or custom-made)
