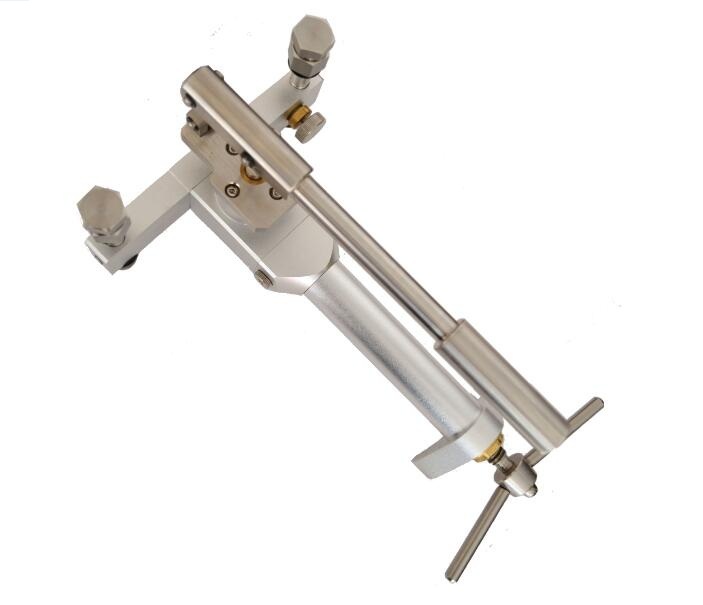

KT30H Hand High Pressure Comparator

Product introduction

KT30H Hand High Pressure Comparator is portable structure and designed to generate pressure from vacuum to 100bar. Built-in filter protects the pump from dirty and make maintenance easy and convenient. The F-adjust valve could accomplish 10Pa (0.1mbar) pressure resolution. Especially the lever lead screw design makes user operate in economize labor. the design of reverse valve makes the switch ofvacuum and positive pressure more smooth. Two standard pressure outputs are easy to connect gauges under test without using the wrenches. It widely calibrates pressure instruments in field and laboratory.

Technical Specification
◆ Generated pressure range: (-0.95~100)bar
◆ Working media: Air
◆ Adjust resolution: 0.1mbar
◆ Material: Body: Stainless steel /Aluminium
Seals:Buna-N
◆ Output interface connection:  M20×1.5Female
◆ Weight:4.3kg
◆ Dimensions:370L×210W×160H (mm)

Functions
KT30h provides pressure measurement for calibrating pressure instruments in field and laboratory. It can be extensively used in power, chemical, petrol, metallurgy, metering, military industry, etc.

Characteristics
◆ portable structure
◆ Built-in filter protects the pump from dirty and make maintenance easy and convenient
◆ user operate in economize labor
