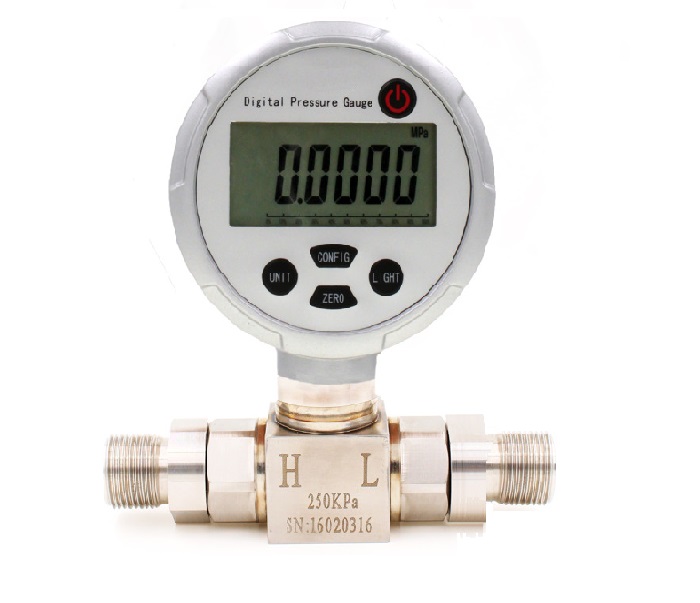

DPG100-DP digital differential pressure gauge
- Product description: Dpg100-dp differential pressure digital pressure gauge is very suitable for liquid and gas medium measurement, which solves the on-site differential pressure measurement. The product adopts an integra
Product introduction
Description
Dpg100-dp differential pressure digital pressure gauge is very suitable for liquid and gas medium measurement, which solves the on-site differential pressure measurement. The product adopts an integrated welding structure, high static pressure resistance, stable and reliable. Both the high and low pressure ends are protected by isolation diaphragms, and both pressure chambers can be in contact with a certain corrosive and conductive fluid, which can be widely used in the field of industrial process control to measure differential pressure.
Application
Industrial process control
Fluid differential pressure measurement
Gas and liquid pressure measurement
Pressure calibration instrument
Pressure leak measurement
Peak record measurement
Features
■ High precision, high reliability
■ Large screen with 6 digits display
■ Automatic temperature compensation function of 0~50 degrees
■ Micro power consumption technology, in no sleep state, continuous work for
more than 10,000 hours
■ Maximum and minimum peak records
■ Over-voltage automatic alarm
Technical parameter
Pressure unit:
mmH2O, mmHg, kg/cm2, Pa, kPa, MPa, psi, bar, mbar
operating hours:
The fastest 10 times/second, (default 3 times/second), the slowest 1 time 10
seconds, adjustable speed
|
Measuring speed |
10Times/s |
3Times/s |
2Times/s |
1Times/2s |
1Times/4s |
|
work time |
300 hours |
600 hours |
8000 hours |
10000 hours |
15000 hours |
|
Measuring speed |
1Times/6s |
1Times/10s |
|||
|
work time |
2 years |
3 years |
show:
White backlight, 6-digit display, adjustable decimal point.
Power supply:
Built-in 3 AA alkaline Nanfu batteries, which can be connected with DC12V/1A
power adapter.
The explosion-proof type has a built-in 14500 disposable lithium battery.
Use
environment:
Environment temperature: (-20~70)℃
Temperature compensation: (0~50)℃
Relative humidity: <95%
Atmospheric pressure: (86~106)kPa
Storage temperature: (-40~85)℃
Pressure
interface:
Pressure interface: M20×1.5 external thread (default), other interfaces are
optional, Ø4 quick connect internal socket (differential pressure type)
Additional features:
Peak record, pressure percentage indication
Other indicators:
Dimensions: Meter head Φ100mm×37mm, total length 132mm
Weight: 0.45kg
Pressure port: M20×1.5
Communication interface: RS232
Conventional pressure gauge selection
|
Pressure range |
accuracy |
medium |
Burst pressure |
|
(-100~0)kPa |
0.02，(0.05,0.1,0.2) |
Gas/liquid |
3X |
|
(0~16) kPa |
0.05，(0.1,0.2) |
Gas/liquid |
3X |
|
(0~25) kPa |
0.05，(0.1,0.2) |
Gas/liquid |
3X |
|
(0~40) kPa |
0.02，(0.05,0.1,0.2) |
Gas/liquid |
3X |
|
(0~60) kPa |
0.02，(0.05,0.1,0.2) |
Gas/liquid |
3X |
|
(0~100) kPa |
0.02，(0.05,0.1,0.2) |
Gas/liquid |
3X |
|
(0~160) kPa |
0.02，(0.05,0.1,0.2) |
Gas/liquid |
3X |
|
(0~250) kPa |
0.02，(0.05,0.1,0.2) |
Gas/liquid |
3X |
|
(0~400) kPa |
0.02，(0.05,0.1,0.2) |
Gas/liquid |
3X |
|
(0~600) kPa |
0.02，(0.05,0.1,0.2) |
Gas/liquid |
3X |
|
(0~1) MPa |
0.02，(0.05,0.1,0.2) |
Gas/liquid |
3X |
|
(0~1.6) MPa |
0.02，(0.05,0.1,0.2) |
Gas/liquid |
3X |
|
(0~2) MPa |
0.02，(0.05,0.1,0.2) |
Gas/liquid |
3X |
Selection of composite range pressure gauge
|
Pressure range |
accuracy |
medium |
Burst pressure |
|
±16kPa |
0.05，(0.1,0.2) |
Gas/liquid |
3X |
|
±25kPa |
0.05，(0.1,0.2) |
Gas/liquid |
3X |
|
±40kPa |
0.05，(0.1,0.2) |
Gas/liquid |
3X |
|
±60kPa |
0.05，(0.1,0.2) |
Gas/liquid |
3X |
|
±100kPa |
0.02，(0.05,0.1,0.2) |
Gas/liquid |
3X |
|
(-100~160)kPa |
0.02，(0.05,0.1,0.2) |
Gas/liquid |
3X |
|
(-100~250) kPa |
0.02，(0.05,0.1,0.2) |
Gas/liquid |
3X |
|
(-100~400) kPa |
0.02，(0.05,0.1,0.2) |
Gas/liquid |
3X |
|
(-100~600) kPa |
0.02，(0.05,0.1,0.2) |
Gas/liquid |
3X |
|
(-0.1~1) MPa |
0.02，(0.05,0.1,0.2) |
Gas/liquid |
3X |
|
(-0.1~1.6) MPa |
0.02，(0.05,0.1,0.2) |
Gas/liquid |
3X |
|
|
|
|
|
[1] Range of automatic temperature compensation: (-10~50), 1 year
accuracy;
[2] The absolute pressure is 0.05% F.S, and the guaranteed accuracy time is 180
days;
[3] The gas pressure medium is required to be non-corrosive gas.
