KDS875 Portable Thermostats
Left
  • KDS875 Portable Thermostats
Right

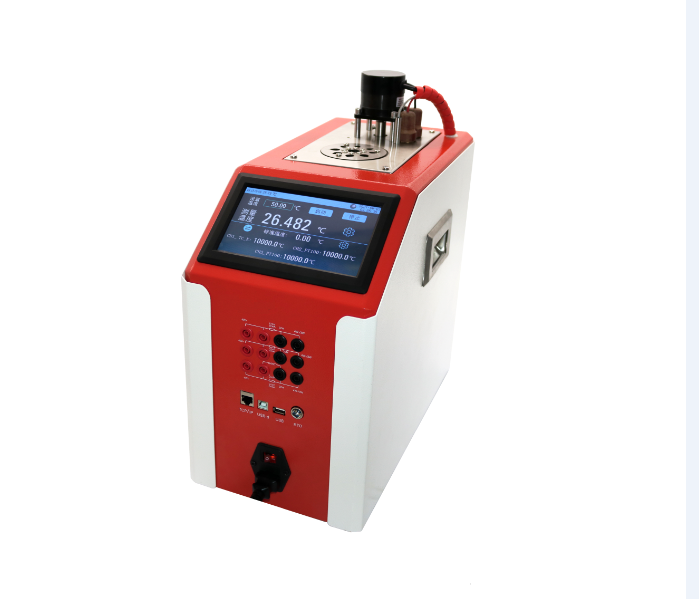

KDS875 Portable Thermostats

  • Product description: Portable thermostatic baths usually use liquid as the working medium, heat the medium through a precise temperature control module, and at the same time use mechanical auxiliary stirring to quickly fo
  • Inquiry

Product introduction

Portable thermostatic baths usually use liquid as the working medium, heat the medium through a precise temperature control module, and at the same time use mechanical auxiliary stirring to quickly form a uniform and stable temperature environment in the working area. In this environment, it can be used for the verification/calibration of various temperature instruments (such as: thermal resistance, liquid-in-glass thermometer, pressure thermometer, bimetal thermometer, thermocouple, etc.).

This product adopts the touch screen design, the interface is intuitive, the operation is simple and convenient. The main interface displays the temperature of the working area in real time for easy viewing

Main Specifications

Portable Constant Temperature Oil/Sink Indicators:


Model                               KDS875-300                 KDS875-95

Medium                     Methyl silicone oil                Soft water

Tmperature range room temperature+30℃~300℃    room temperature+15℃~95℃

Tmperature field uniformity                   0.01℃

Tmperature fluctuation                          0.01℃

Workspace size                                     φ80*250mm

Use ambient temperature                    20~30℃

power supply                                       220V/50Hz

power                                                    1.2kW

volume                                                  5L

Dimensions (mm)                                 420*210*460

quality                                                    15kg
