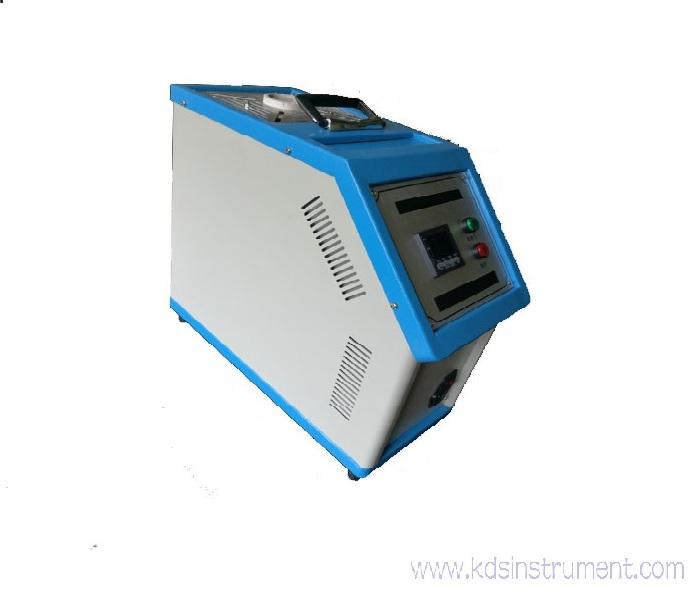

KDS382 Portable dry block Temperature calibrator
- Product description: KDS382 Portable dry block Temperature calibrator
Product introduction
1. Use Profile
Used in the required temperature range, it is easy to set and accurately produce the required temperature.It has the characteristic of small volume, fast heating, stable temperature control, no pollution, etc.The temperature sensor and instrument can be integrally calibrated, so it is easy to carry, easy to use, easy to fast and reliable temperature calibration. It is widely used in machinery, chemical, food, pharmaceutical and other industries.
2. Product features:
2. 1. Various types of insert tubes can meet the test and calibration of sensors of different sizes and quantities.
2. 2. The heating rate can be adjusted according to user requirements
3.Product model and technical specifications:
|
Model |
KDS382-140 |
KDS382-400 |
KDS382-600 |
KDS382-1000 |
KDS382-1200 |
|
Heating source |
Semiconductor refrigeration |
electric heating |
electric heating |
electric heating |
electric heating |
|
Accuracy |
0.2% |
0.2% |
0.2% |
0.2% |
0.2% |
|
Stability |
±0.04℃ |
±0.1℃ |
±0.1℃ |
±0.1℃ |
±0.1℃ |
|
Horizontal temperature field |
≤±0.1℃ |
≤±0.1℃ |
≤±0.1℃ |
≤±0.1℃ |
≤±0.1℃ |
|
Well depth |
160mm |
160mm |
160mm |
160mm |
160mm |
|
Power |
400w |
300w |
300w |
600w |
600w |
|
Power supply |
220v50hz |
220v50hz |
220v50hz |
220v50hz |
220v50hz |
|
SIZE |
385*185*325mm |
385*165*325mm |
385*165*325mm |
385*185*325mm |
385*185*325mm |
|
weight（Net weight） |
12KG |
8KG |
8KG |
11KG |
11KG |
|
weight（Containing packaging） |
23kg |
17kg |
17kg |
20kg |
20kg |
