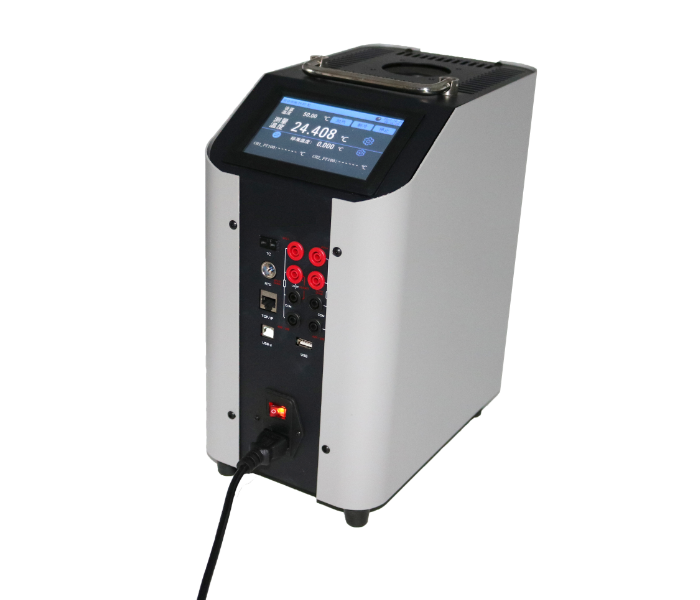

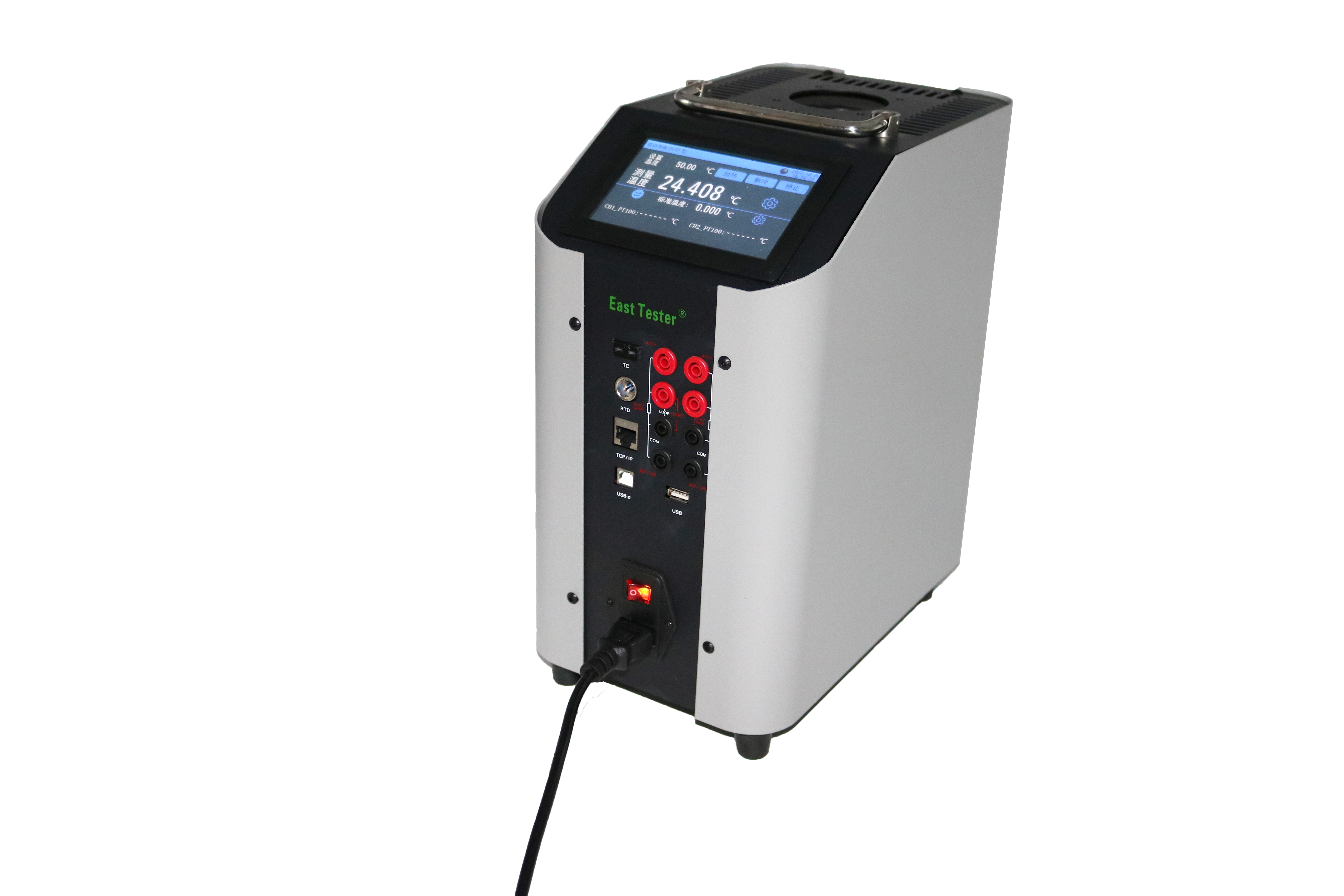

KDS804 Dry Block Calibrator

KDS804 series portable intelligent Dry Block Temperature Calibrator (Dry Well Furnace/Bath), simple operation, light and easy to carry, accurate temperature control, suitable for laboratory and industrial field temperature calibration / metering; its calibration temperature range can be from -30 ° C to 1200 ° C, the temperature block uses high thermal conductivity Rate alloy material to ensure uniform and stable internal temperature field. Technologies such as temperature control accuracy, horizontal temperature field, vertical temperature field, stability, load capacity and hysteresis are all at the leading level in China. Widely used in machinery, shipbuilding, chemicals, food, electricity, pharmaceuticals and other industries.

 Small size, light weight, easy to carry;

¤ Various types of insertion tubes can meet the test and calibration of sensors of different sizes and quantities. It can also be customized according to customer’s requirement;

¤ Horizontal temperature field and vertical temperature field are good;

¤ Insert depth stays the leading role in this industry

¤ 5.7 inch TFT color LCD display, full touch operation, using intuitive and eye-catching;

¤ Chinese-English interface;

¤ With the management software, the calibration data can be easily read.

¤ Quick cooling, convenient setting, good stability of temperature control;

¤ The soaking block can be replaced;

¤ Protective functions such as short circuit with load, load circuit breaking, sensor protection, etc.

¤ Measurement signal: 3 channels , 1 channel as standard,2 channel as detected channel(Multifunctional Measurement); Measurement Signal : mA/mV/V/Ω measure, DC24V output, on-off measurement and so on;

¤ Temperature Compensation: automatic ( build-in AA grade Pt100 platinum resistance )or manual

¤ Communication port: Usb Device、Usb Host、Tcp/IP(LAN)
