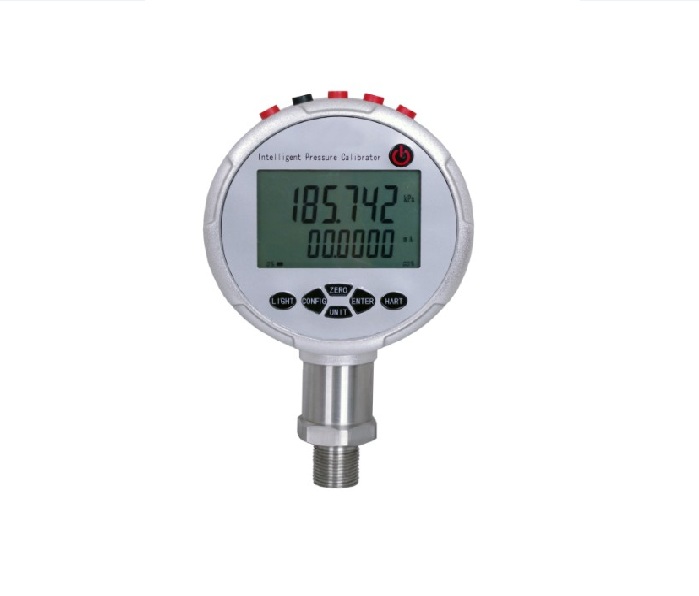

DPC100 Pressure Calibrator
- Product description: DPC100 Intelligent Pressure Calibrators is a single range, full scale pressure measurement, high accuracy DC current, voltage measurement and the 24VDC power output function instrument. Can be used to
Product introduction
DPC100 Intelligent Pressure Calibrators is a single range, full scale pressure measurement, high accuracy DC current, voltage measurement and the 24VDC power output function instrument. Can be used to verify the ordinary (precision) pressure gauge, pressure transmitter, pressure regulating valves, pressure switches and pressure of real-time measurement,
FEATURES
· Pressure measurement
· Accuracy: 0.025%FS,0.05%FS
- Pressure ranges to 2,500 bar
- Measure mA or V with 0.02% RD + 0.003%FS accuracy Power transmitters during test using 24V loop supply Pressure switch test
- Engineering unit selectalbe: Pa,kPa,MPa, psi, bar, mbar, mmH2O, mmHg
- Advanced temperature compensation
- Large, easy to read display with 6-digit resolution Back lighted display
- Rechargeable battery or AC adapter
- Two-point correction, user’s friendly
- NIM traceable calibration certificate (optional)
APPLICATIONS
- Gauge calibration
- Precision pressure measurement
- Pressure transmitters calibration
- Pressure switch testing
- Safety relief valve testing
- Pressure regulator testing
- Intelligent pressure transmitter calibration
SPECIFICATIONS
Accuracy
- DPC100-02: 0.02% of full scale
- DPC100-05: 0.05% of full scale
Gauge types
- Gauge pressure
- Compound Pressure
- Absolute pressure
- Differential pressure
Conventional Pressure Range Selection
|
P/N |
Pressure Range (bar) |
Accuracy |
Accuracy |
Accuracy |
|
DPC100-1 |
(-1~0)bar |
0.02, G |
0.05, G |
-- |
|
DPC100-2 |
(0~0.16) bar |
0.02, G |
0.05, G |
|
|
DPC100-3 |
(0~0.25) bar |
0.02, G |
0.05, G |
|
|
DPC100-4 |
(0~0.4)bar |
0.02, G |
0.05, G |
0.1A |
|
DPC100-5 |
(0~0.6) bar |
0.02, G |
0.05, G |
|
|
DPC100-6 |
(0~1)bar |
0.02, G |
0.05, G |
|
|
DPC100-7 |
(0~1.6)bar |
0.02, G |
0.05, G |
|
|
DPC100-8 |
(0~2.5) bar |
0.02, G |
0.05, G |
|
|
DPC100-9 |
(0~4) bar |
0.02, G |
0.05, G |
|
|
DPC100-10 |
(0~6) bar |
0.02, G |
0.05, G |
|
|
DPC100-11 |
(0~10) bar |
0.02, SG |
0.05, SG |
|
|
DPC100-12 |
(0~16) bar |
0.02, SG |
0.05, SG |
|
|
DPC100-13 |
(0~25) bar |
0.02, SG |
0.05, SG |
|
|
DPC100-14 |
(0~40)bar |
0.02, SG |
0.05, SG |
|
|
DPC100-15 |
(0~60)bar |
0.02, SG |
0.05, SG |
|
|
DPC100-16 |
(0~100)bar |
0.02, SG |
0.05, SG |
|
|
DPC100-17 |
(0~160 )bar |
0.02, SG |
0.05, SG |
|
|
DPC100-18 |
(0~250)bar |
0.02, SG |
0.05, SG |
|
|
DPC100-19 |
(0~400) bar |
0.02, SG |
0.05, SG |
|
|
DPC100-20 |
(0~600) bar |
0.02, SG |
0.05, SG |
|
|
DPC100-21 |
(0~700) bar |
0.02, SG |
0.05, SG |
|
|
DPC100-22 |
(0~1000) bar |
-- |
-- |
0.1,SG |
|
DPC100-23 |
(0~1600) bar |
-- |
-- |
0.1,SG |
|
DPC100-24 |
(0~2500) bar |
-- |
-- |
0.1,SG |
