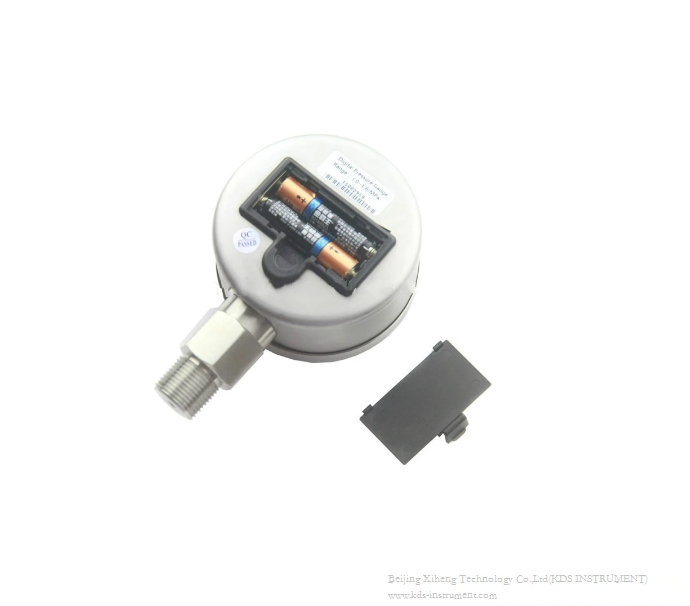

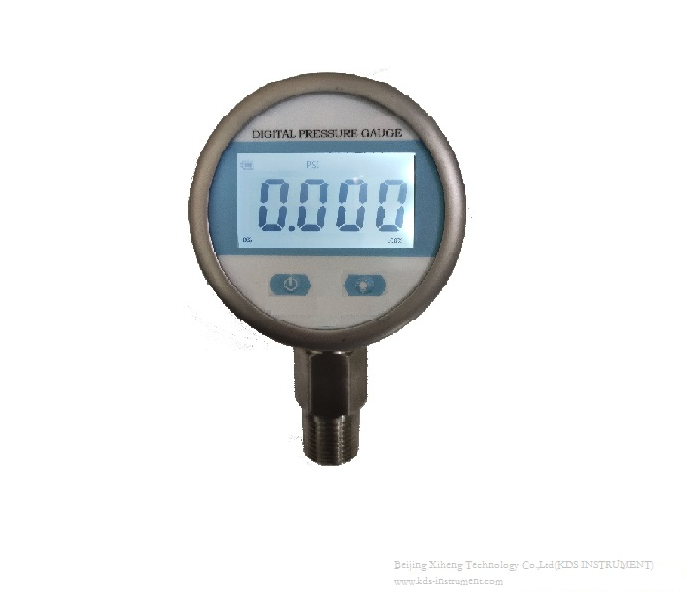

DPG260 Digital Pressure Gauge
- Product description: DPG260 Digital Pressure Gauge is portable, field digital gauge.
Product introduction
DPG260 Digital Pressure Gauge is portable, field digital gauge. With advanced microprocessor technology and state-of the-art silicon pressure sensors,DPG260 test gauges provide a reliable economic solution for pressure application in the industries of power,chemical ,petrol, oil&gas metallurgy,metering,etc. Every DPG260 Digital pressure gauge passes the high and lower temperature aging, so it could assure the products more accurate and reliable.
Features:
u · 4 digit LCD showing the pressure accurately in real time
u Different pressure units to change , zero clearing, backlight, on/off·
u · 304 Stainless steel housing
u · Pressure units available (MPa、kPa、Pa、Psi、Bar、mmH2O、mmHg);
u · Battery powered , low-power design keeping working for 12 months,
u · Low voltage alarm,
u All stainless steel shell , small size
SPECIFICATION:
|
Range |
(-0.1~25)MPa |
|
Over Pressure |
150% |
|
Acc. |
1%FS,0.5%,0.25%(20±5℃) |
|
Size |
65mm |
|
Backlight Color |
White |
|
Supply |
3V(2 batteries of AAA) |
|
Long-term Stability |
Typical ：±0.5%FS/ year |
|
Operating Temperature |
20±5℃ |
|
Compensation Temperature |
10~30℃ |
|
Electric Protection |
En61326 |
|
Sampling Frequency |
Gas , liquid , water |
|
Pressure Connection |
G1/4,M14*1.5 or screw customized |
|
Connector Material |
304SS |
|
Shell |
|
|
Function |
On/off, zero clearing, units changing, backlight |
