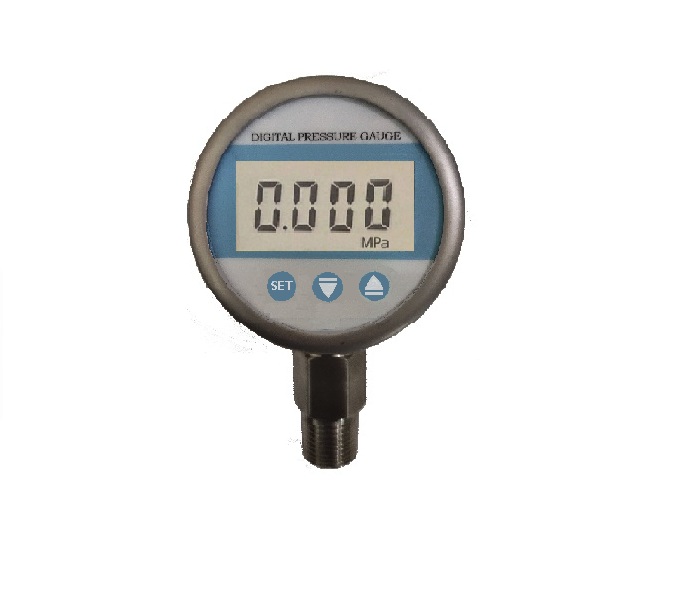

DPG207 digital remote pressure gauge
- Product description: DPG207 digital remote pressure gauge can choose 4-20mA current output or RS485 signal output
Product introduction
DPG207 digital remote pressure gauge can choose 4-20mA current output or RS485 signal output.
This digital remote pressure gauge uses a four-digit display, which can realize real-time pressure on site, and the pressure signal can be transmitted remotely, and the transmission distance is better than 500 meters. Built-in pressure sensor, powerful function, users can change the pressure unit, calibrate the zero error, correct the filter constant, etc.
DPG207 digital remote transmission pressure gauge uses 304 stainless steel housing and connectors, waterproof cable outlet, waterproof grade IP65, and has a very wide range of media applicability.
This product can be used to replace the traditional pointer type remote pressure gauge or pressure transmitter.
☆ 4-20mA signal output (optocoupler isolation)
☆ Adopt full 304 stainless steel shell, strong and durable
☆ Isolated output, strong anti-interference
☆ High precision, long transmission distance, stable performance
☆ Small size, 60mm diameter
☆ Optional display digits
☆ Optional pressure unit（MPa, kgf/cm2,bar, psi, mbar, kPa）
☆ Baud rate 2400/4800/9600/19200/38400/57600 optional
☆ With RS485 signal output
☆ Adopt standard MODBUS RTU communication protocol
☆ High degree of intelligence, users can set the address, baud rate, filter constant, recalibration, etc.
|
Pressure Range |
Vacuum: 0~-100KPa Consolidation：(-0.1~0.1)MPa (-0.1~0.25)MPa (-0.1~0.4)MPa (-0.1~0.6)MPa (-0.1~1.0)MPa (-0.1~2.5)MPa Mirco：(0 ~ 5) kPa (0 ~ 10) kPa (0 ~ 25) kPa (0 ~ 50) kPa (0 ~ 100) kPa Normal：(0 ~ 160) kPa (0 ~ 250) kPa (0 ~ 400) kPa (0 ~ 600) kPa (0 ~ 1) MPa (0 ~ 1.6) MPa ... (0 ~ 60) MPa High：0-70/100MPa |
|
Overload Pressure |
≤10MPa，200%，＞10MPa，150% |
|
Response Time |
2ms |
|
Interface |
M20*1.5 G1/4 NPT1/4，etc |
|
Accuracy |
±0.5%f.s， 0.25%f.s |
|
Display |
4-digit LCD (4-20mA),4-digit LED(RS485) |
|
Stability |
±0.5%f.s/year |
|
Dimensions |
diameter 60mm， thickness 38mm |
|
Output Signal |
4-20mA or RS485 |
|
Power supply |
15-28V (24VDC recommended) |
|
Power consumption |
＜0.4W |
|
Measuring medium |
water, oil, gas and non-corrosive medium to stainless steel |
|
Transmission distance |
better than 500 meters |
|
Waterproof rating |
IP65 |
|
Shell |
304 Stainless Steel |
|
Operationg Temperature |
-10℃~60℃ |
|
Storage Temperature |
-20℃~70℃ |
