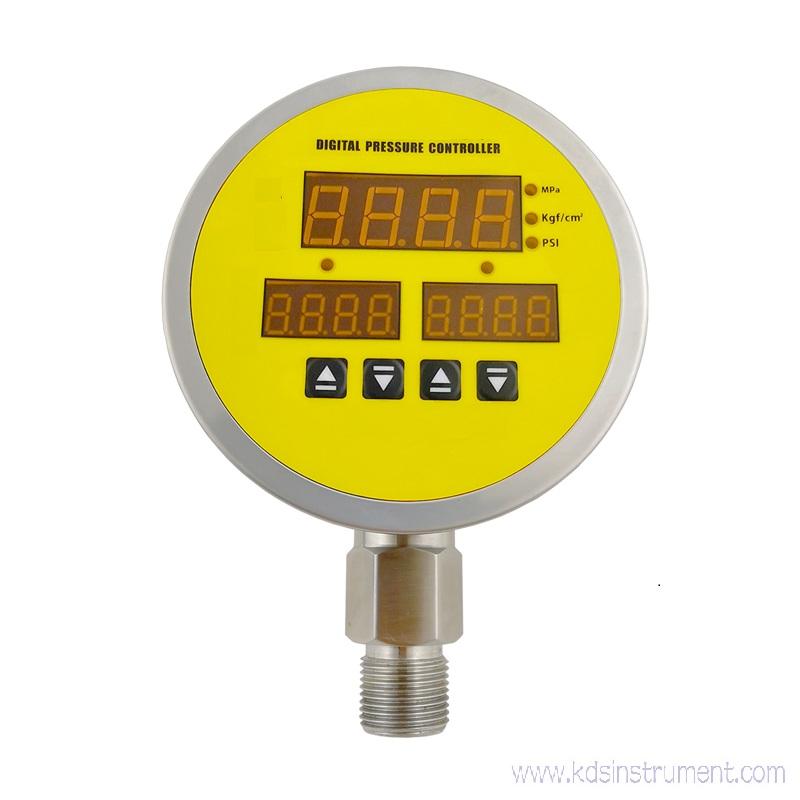

KT-S928E Digital Pressure Switch
- Product description: KT-S928E is a intelligent digital pressure switch, setting pressure measurement, pressure display, control in one professional unit.
Product introduction
KT-S928E Digital Pressure Switch
KT-S928E is a intelligent digital pressure switch, setting pressure measurement, pressure display, control in one professional unit. It can be set two group NO/NC alarm points and also achieve two group high and low pressure control. “One key to zero clearing” and “three pressure unit to change” are available.
We pay more attention to the stability of circuit with anti-electromagnetic interference, cells lightning protection and electronic protection. The shell and connector are 304SS.
APPLICATION
Machine automation
Engineering machiner
Medical equipment
Source and water treatment system
Agricultural machinery
Testing for industry field
Hydraumatic and pneumatic system
CHARACTERISTICS
100mm diameter, 304SS shell
Radial and axial mounting
Different pressure units to chose, one key to zero clearing
Double relay output signal, each group with NO/NC, returning difference be set independent
Multiple connection modes, be used as controller, switch, digital electro connecting pressure gauge
SPECIFICATION:
|
Range |
General Range: 0-0.2...1...1.6...5...10...25...40...60...200Mpa Micro Range:0-5...10...25...40...60...100Kpa Negative Range:-100 ~0Kpa(-0.1 ~0Mpa) |
|
Over Pressure |
Range≥10Mpa 150%; Range<10Mpa 200% |
|
Acc. |
±0.5%FS,1%FS(100...160MPa) |
|
Alarm Point |
Alarm point be set discretionarily within the range. |
|
Alarm Type |
Double relays output signal(NO/NC) |
|
Operating Temperature |
-20~80℃ |
|
Compensation Temperature |
-10 ~70 ℃ |
|
Electric Protection |
Reverse protection, anti-electromagnetic interference |
|
Sampling Frequency |
5 times/sec |
|
Measurement Medium |
Gas, water, oil |
|
Pressure Connection |
M20*1.5, G1/4, G1/2, NPT1/2, NPT1/4 |
|
Connector Material |
304SS |
|
Shell |
304SS |
|
Supply |
24VDC, 220VAC, 380VAC |
|
Weight |
0.35Kg |
