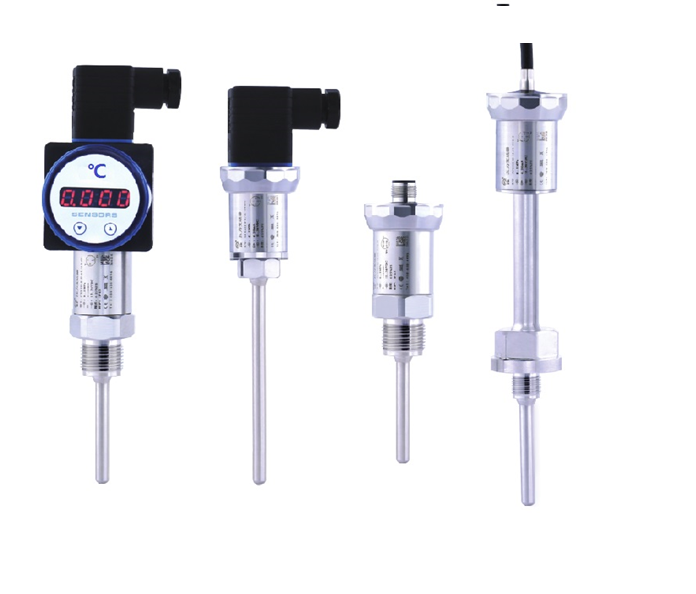

KDS611T temperature transmitter

Product introduction

Product Overview

The temperature transmitter product uses PT100 (1/3B level) as the signal measurement element, and has undergone computer automatic testing. It has been compensated for zero and sensitivity temperature over a wide temperature range using laser resistance adjustment technology. The amplification circuit is located inside a stainless steel casing, converting the sensor signal into a standard output signal, fully leveraging the technological advantages of the sensor and providing excellent performance to the temperature transmitter. It has anti-interference, overload, small temperature drift, high stability, and high measurement accuracy, making it an ideal temperature measurement instrument in the field of industrial automation

Product Features

a) Wide voltage power supply, non-linear correction, high accuracy

b) Small size, light weight, and easy installation

c) Designed to prevent lightning strikes, intercept frequency interference, and have strong anti-interference ability

d) Wiring reverse and overvoltage protection, current limiting protection

working principle

A temperature transmitter is a PT100 sensor that produces a resistance effect under the influence of temperature. It is converted by a dedicated processing unit to generate a differential voltage signal, which is amplified by a dedicated amplifier to convert the signal corresponding to the range into a standard analog or digital signal.

technical parameter

Measurement medium: liquid or gas, etc. (compatible with contact materials)

Measurement range: -50~300 ℃ (see range parameter selection table for details)

Measuring element: 1 * Pt100 (1/3B level)

Output: 4-20mA, RS485, 0-10VDC, 0-5VDC, 1-5VDC

Power supply: 12-36VDC, 15-36VDC

Response time: protective tube φ 6mm ≈ 18s, protective tube φ 10mm ≈ 36s (according to IEC60751,4.4/s water flow, 10 ℃ step)

Stability performance: ± 0.1% FS/year

Connection time: 400ms

Protection level: IP65 is not displayed and IP54 is displayed. Note: The above protection level refers to the level achieved after the electrical connection is complete

Accuracy level: 0.5% FS

Output and power supply
