DPG286 Digital Pressure Gauge

Product introduction

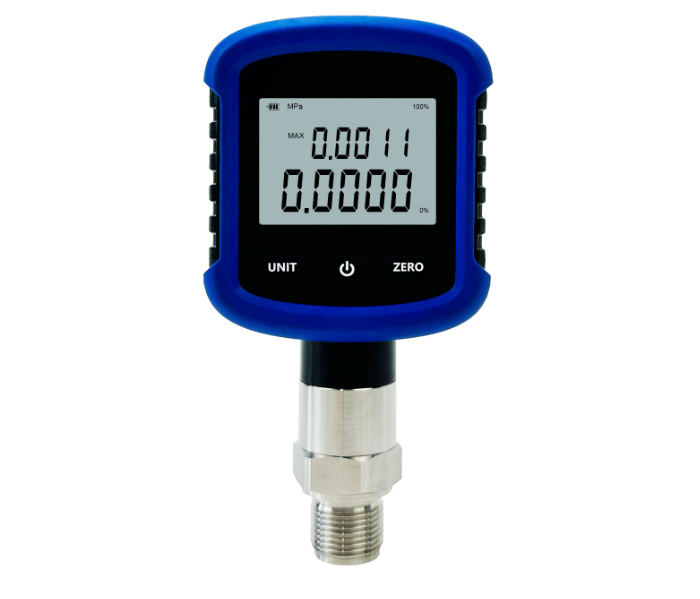

DPG286 Digital Pressure Gauge

Product description

DPG286 is a digital pressure gauge with a built-in high-precision pressure sensor that can accurately display pressure in real time and has the characteristics of high precision and good long-term stability.

This digital pressure gauge is equipped with a large-size LCD display and has multiple functions such as zeroing, backlight, on/off, unit switching, low-voltage alarm, etc. It is simple to operate and easy to install. The dial orientation can be rotated 330°, allowing customers to read from the desired angle. The equipment product adopts an integral shell with rubber coating, which has good shock resistance and can measure gas, liquid, oil and other media that are non-corrosive to stainless steel. This series of products supports Bluetooth applets and APP configuration parameters, including: pressure value display, acquisition rate modification, clearing operation and other settings. The product comes with open source Bluetooth protocol parsing files to facilitate customers' secondary development.

DPG286 digital pressure gauge is suitable for portable pressure measurement, equipment matching, calibration equipment and other pressure measurement fields.

Technical features

☆ Dial orientation can be rotated 330°

☆ Super large LCD screen, supports multiple unit switching

☆ Supports multiple functions such as clearing, backlight, Bluetooth connection, APP collection, etc.

☆ Low power consumption design, 2 AA batteries, 12 months battery life

☆ The product is beautiful, the shell is fully covered with rubber, and the hand feels delicate

Technical Parameters

Measuring range: -0.1~0~0.1...1..60MPa

Overload pressure: 200%FS

Backlight color: white backlight

Appearance size: 143.5*75*40.5mm

Accuracy level: 0.5%FS, 0.2%FS

Long-term stability: better than +0.3%FS/year

Working temperature: -20~65℃

Electrical Protection: Anti-electromagnetic interference design

Measuring medium: oil, water, gas and other stainless steel non-corrosive media

Pressure interface: M20*1.5, G1/4 or customized thread

Connector material: 304 stainless steel

Shell material: TPE+ABS

Product functions: power on/off, backlight, reset, unit switching, Bluetooth connection

Power: 3V (2 AA batteries)

Battery display: four-segment display

Dial: Dial can be rotated 330°

Pressure unit: MPa, bar, kgf, mH20, PSI, kPa,

mmHg, mBAR, mmH2O, Pa, inWC

Protection level: IP54
