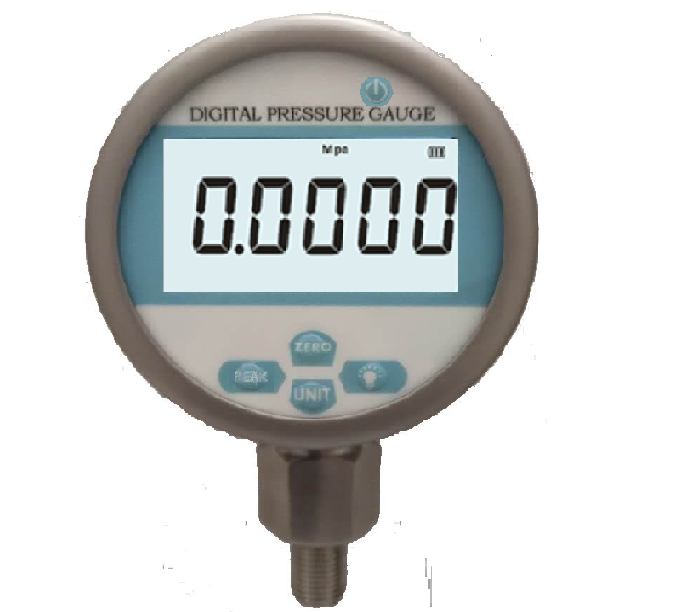

DPG280G Digital Pressure Gauge
- Product description: DPG280G Digital Pressure Gauge is portable, high-accuracy test gauge. With advanced microprocessor technology and state-of the-art silicon pressure sensors
Product introduction
DPG280G Digital Pressure Gauge is portable, high-accuracy test gauge. With advanced microprocessor technology and state-of the-art silicon pressure sensors,DPG280G testgauges provide an accurate,reliable and economic solution for pressure application in the industries of power,chemical ,petrol, metallurgy,metering,etc.Every DPG280G Digital pressure gauge passes the high and lower temperature aging, so it could assure the products more accurate and reliable.
Products Feature
- Accuracy：±0.5%F.S,±0.25%FS
- Pressure range to 1000bar
- 5 bits big LCD display
- Back light,
- Stainless steel housing
- Pressure units available (MPa、kPa、Pa、Psi、Bar、mbar、mmH2O、mmHg、kg/cm2);
- Zero clearing
- On/off button,
- Low voltage alarm
- Maximun and minimum function
- Dry-Battery-powered,low power design keeping it work more than 12 months
- Connection :1/4NPT,1/4BSP (or according to clients' demand)
- Pressure percentage display
SPECIFICATION:
|
Range |
General Range: 0-0.2...1...1.6...5...10...25...40...60...100Mpa MicroRange:0-5...10...25...40...60...100Kpa NegativeRange:-100 ~0Kpa(-1 ~0bar) |
|
Over Pressure |
Range≥10Mpa 150%; Range<10Mpa 200% |
|
Acc. |
±0.5%FS, ±0.25%FS |
|
Size |
80mm |
|
Supply |
3V(2 batteries of AAA) |
|
Function |
Units/Back light/Reset/ON/OFF .IP65,Max.Min,Power display |
|
Measurement Medium |
Gas, water, oil |
|
Pressure Connection |
M20*1.5, G1/4, G1/2, NPT1/2, NPT1/4 |
|
Connector Material |
304SS |
|
No. |
Pressure Range |
|
|
DPG280G-1 |
(-1~0)bar |
|
|
DPG280G-2 |
(0~0.16) bar |
|
|
DPG280G-3 |
(0~0.25) bar |
|
|
DPG280G-4 |
(0~0.4)bar |
|
|
DPG280G-5 |
(0~0.6) bar |
|
|
DPG280G-6 |
(0~1) bar |
|
|
DPG280G-7 |
(0~1.6)bar |
|
|
DPG280G-8 |
(0~2.5)bar |
|
|
DPG280G-9 |
(0~4) bar |
|
|
DPG280G-10 |
(0~6) bar |
|
|
DPG280G-11 |
(0~10 )bar |
|
|
DPG280G-12 |
(0~16) bar |
|
|
DPG280G-13 |
(0~25)bar |
|
|
DPG280G-14 |
(0~40 )bar |
|
|
DPG280G-15 |
(0~60)bar |
|
|
DPG280G-16 |
(0~100)bar |
|
|
DPG280G-17 |
(0~160)bar |
|
|
DPG280G-18 |
(0~250)bar |
|
|
DPG280G-19 |
(0~400)bar |
|
|
DPG280G-20 |
(0~600)bar |
|
|
DPG280G-21 |
(0~700)bar |
